TR-3 Bale Handler
TR-3 Bale Handler
TAKE IT TO THE
NEXT LEVEL.

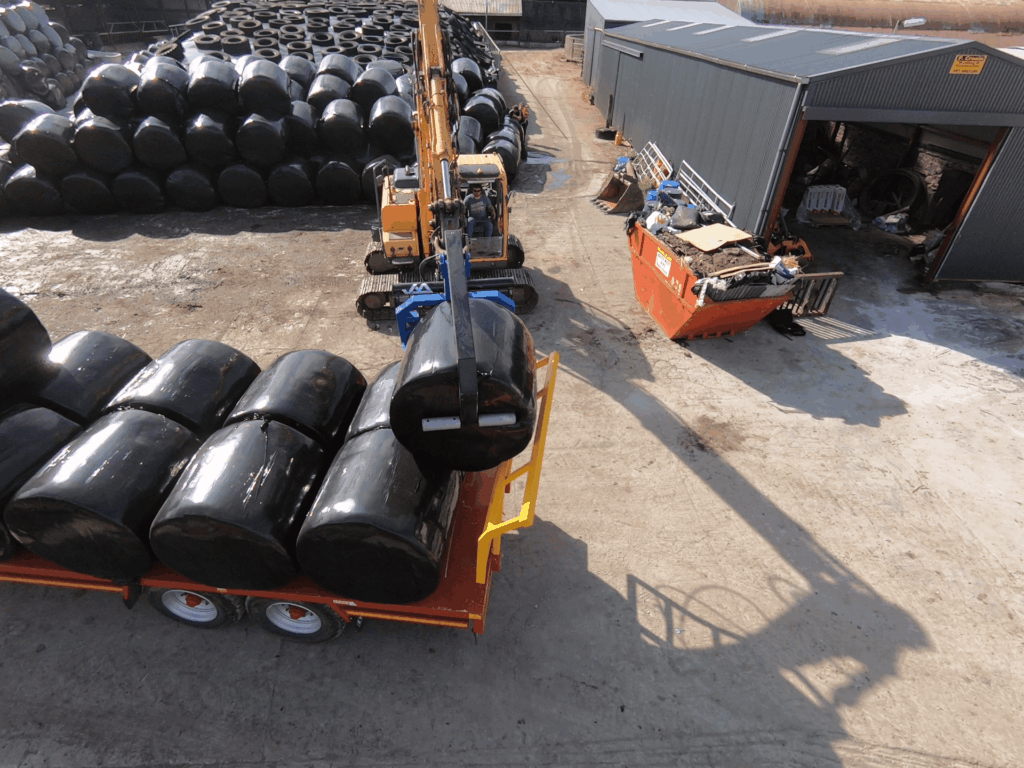

JM Agri TR‑3 efficiently lifts, stacks, and protects silage and hay bales.
TR-3 Bale Handler
Built for strength, safety, and precision
The TR-3 Bale Handler from JM Agri Design is engineered to handle round bales with maximum stability and care. Designed for professional farmers and contractors, the TR-3 combines robust build quality, smooth operation, and superior grip to ensure every bale is lifted, stacked, or transported safely and efficiently.
Constructed from high-grade steel and precision-welded for long-lasting durability, the TR-3 is built to perform under pressure — whether you’re moving silage, hay, or straw bales. Its heavy-duty arms and hydraulic clamping system provide a secure, controlled hold, minimising damage to bale wrap and ensuring consistent handling even on uneven ground.
The low-profile, compact design of the TR-3 offers excellent visibility from the cab, improving manoeuvrability in tight spaces and reducing operator fatigue. Each unit is finished with a durable powder coating for corrosion resistance and longevity, keeping it looking and performing like new season after season.
Compatible with a wide range of loaders and telehandlers, the TR-3 can be fitted with brackets to suit JCB, Manitou, Merlo, John Deere, Volvo, Kramer, Claas, and more.
Whether you’re working in the yard or the field, the TR-3 Bale Handler delivers strength, precision, and reliability you can depend on — proudly designed and built by JM Agri Design in the UK.
Patented Over-Arm Design
The unique design of TR bale handlers over-arms allows gripping of a bale at ANY angle and delivers increased manoeuvrability when operating in confined spaces.
Grab From ANY Angle
The unique patented over-arm design, fitted with rotating rollers and check valves, allows the TR to grip a bale safely and securely at ANY angle, without damage to the plastic wrap.
Check Valve
A check valve is fitted as standard on all TR bale handlers by JM Agri-Design. This ensures a consistent grip is maintained on the bale at all times, ensuring safe transportation and minimum damage.
Rotating Rollers
The over-arm supports two large rotating rollers to ensure bales are handled without risk of damaging the plastic wrap. These rollers, along with all other pivot points, have composite bushings and grease points fitted as standard
Technical Specifications
Length (Opened): 1.8 m
Width: 1.23 m
Height (Closed): 1.6 m
Height (Opened): 2.1 m
Weight: 220 kg (TR-3), 250 kg (TR-4)
Max Bale Length: 1.3 m
Max Bale Height: 2 m
Max lifting Weight: 1200 kg
Hydraulic Connection: Double Acting
Oil Pressure (Min): 170 bar
